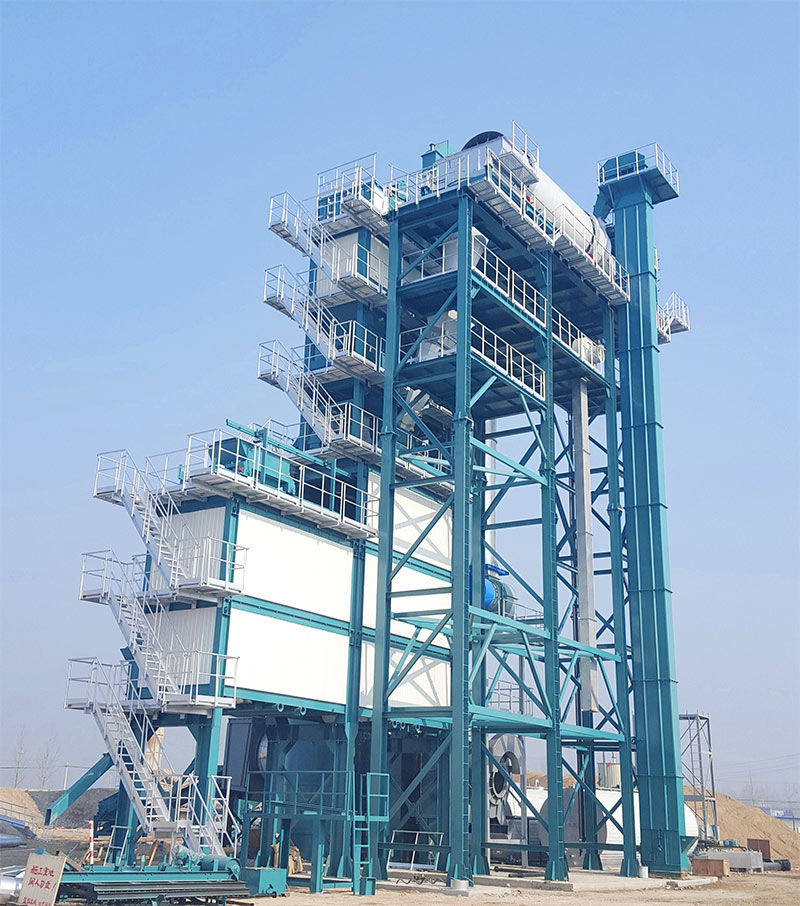

The recycled asphalt heating mixing plant is using recycling technology to mill the used asphalt mixture off the pavement. After the screening, heating, storage, and measuring, it is added into the agitator of various types of asphalt mixing equipment according to different proportions. Then it is mixed with original asphalt evenly in the agitator, to get an excellent asphalt mixture.
1.The whole equipment with H Shape steel construction comes to stability.
2.Multi-point temperature detection and automatic air volume control system ensure the stability of transient temperature to avoid producing fume.
3.The special drying drum could avoid asphalt aging and wind tunnel phenomenon, improve heating efficiency, and reduce power consumption.
4.The excessive combustion chamber could prevent the bonding of recycling materials and drum walls, to effectively avoid asphalt aging and burning loss.
| MODEL | RAP800 | RAP1000 | RAP1500 | RAP2000 | |
| OUTPUT | 64t/h | 80t/h | 120t/h | 160t/h | |
| MEASUREMENT ACCURACY | STATIC | ±0.5% | |||
| DYNAMIC | ±2.5% | ||||
| FUEL CONSUMPTION | fuel：6-8kg/t | ||||
| TOTAL POWER | 148.8kW | 160kW | 259kW | 280kW | |
| MAX.PROPORTION OF RECYCLED MATERIAL AND SUPPORTING ORIGINAL MIXING PLANT | 1000type | 53% | —– | —– | —– |
| 1500type | 40% | 66.7% | —– | —– | |
| 2000type | —– | 50% | 75% | —– | |
| 3000type | 33% | 50% | 67% | ||
| 4000type | —– | —– | 37.5% | 50% | |
| 5000type | —– | —– | —– | 40% | |
